1.1 kV Grade LV Power & Control Cables

Power cables are engineered for bulk power transmission. They are designed to safely transmit high-current electricity from the main power source (like transformers or switchgears) to heavy electrical equipment and machinery.

Control cables are precision cables designed to carry low-current, multi-core signals. They send commands, monitor automated processes, and control the operational functions of electrical equipment and control panels.

Construction & Layering

To ensure maximum durability and safety under heavy electrical loads, 1.1 kV Power Cables are constructed with the following high-grade layers:

  • Conductor: High-conductivity Electrolytic Grade Aluminum or Annealed Copper (typically structured in larger cross-sections to handle high current).
  • Insulation: Typically XLPE (Cross-linked Polyethylene) for higher temperature resistance and current-carrying capacity, or PVC (Polyvinyl Chloride).
  • Inner Sheath: Extruded or taped PVC layer that acts as a secure bedding for the armour.
  • Armouring: Galvanized Steel Wire or Strip providing mechanical protection against physical damage and serving as a reliable earth path for electrical safety.
  • Outer Sheath: The final protective layer, formulated from Flame Retardant (FR) or Flame Retardant Low Smoke (FRLS) or Low Smoke Zero Halogen (LSZH), PVC to prevent fire propagation.

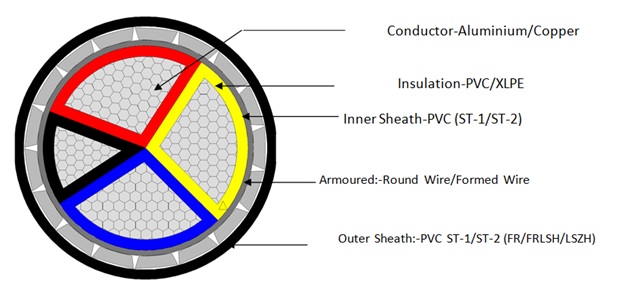

XLPE PVC Insulated Power Cable
XLPE & PVC Insulated Power Cable

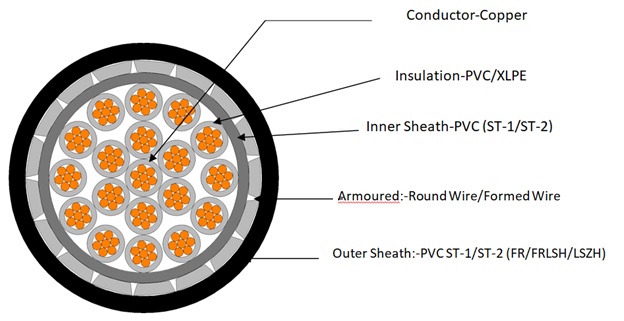

LT XLPE PVC Control Cable
LT XLPE &PVC Control Cable
Control cables feature a multi-core design (often with numbered or color-coded cores) built to withstand continuous signaling environments:
  • Conductor: High-conductivity Annealed Copper (almost exclusively used in control cables to ensure superior signal integrity and flexibility; typically smaller cross-sections like 1.5 sq mm or 2.5 sq mm).
  • Insulation: Typically PVC (Polyvinyl Chloride) for reliable dielectric strength, or XLPE for specialized high-temperature control applications.
  • Inner Sheath: Provides a smooth bedding layer to bundle the multiple control cores together and protect them from the armour.
  • Armouring: Galvanized Steel Wire or Strip ensuring the signal cores are protected from external crushing forces and mechanical impact.
  • Outer Sheath: The tough external layer, usually Flame Retardant (FR) or Flame Retardant Low Smoke (FRLS) or Low Smoke Zero Halogen (LSZH), PVC, critical for densely packed control trenches.

Relevant IS Standards (Bureau of Indian Standards)

Cable Feature IS Standard Description
XLPE Insulated IS 7098 (Part 1) Cross-linked polyethylene insulated PVC sheathed cables up to and including 1100V (Preferred for Power & Control Cable).
PVC Insulated IS 1554 (Part 1) PVC insulated (Heavy Duty) cables for working voltages up to and including 1100V. (Preferred for Power & Control Cable)
Conductors IS 8130 Conductors for Insulated Electric Cables and Flexible Cables. (Preferred for Power & Control Cable)
Armouring IS 3975 Mild Carbon with Medium Coated Galvanized Steel Wires, Formed Wires and Tapes for Armouring of Cables.
Testing IS 10810 Methods of Test for Cables.
