1.1kV Aerial Bunched Cables

PRIMECAB Aerial Bunched Cables are the modern replacement for traditional bare overhead wires. By bundling multiple insulated conductors into a single "bunch," we provide a safer, more reliable, and theft-proof solution for overhead power distribution.

Designed for both rural and urban environments, our AB Cables are built to withstand the harshest environmental conditions while ensuring uninterrupted power supply.

Key Construction Features

  • High-Grade Conductors: Stranded and compacted Aluminum phase conductors for excellent conductivity.
  • Weatherproof Insulation: Coated with UV-stabilized Black XLPE (Cross-linked Polyethylene) to protect against extreme sunlight, rain, and pollution.
  • High-Strength Messenger: A high-tensile Aluminum Alloy wire that carries the mechanical load of the cable, ensuring it doesn't sag or snap.
  • Core Identification: Easy-to-identify phases using longitudinal ridges or color-coding for fast installation.

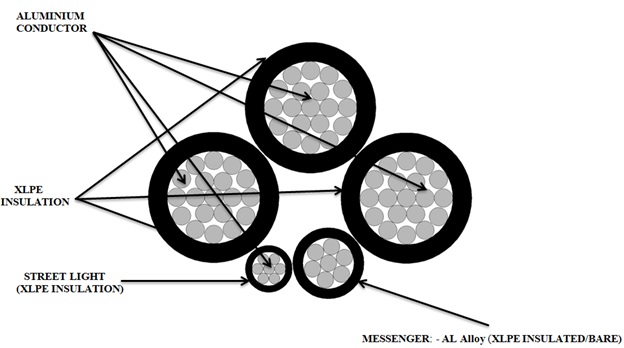

Drawing of LT XLPE Insulated AERIAL BUNCHED CABLE
Drawing of LT XLPE Insulated AERIAL BUNCHED CABLE

Advantages of PRIMECAB AB Cables

  • Maximum Safety: The insulated design prevents accidental electrocution to humans and wildlife, even if the cable falls.
  • Power Theft Prevention: The twisted, insulated bundle makes illegal tapping (hooking) virtually impossible, significantly reducing commercial losses.
  • High Reliability: Prevents short circuits and "sparking" caused by high winds, falling tree branches, or bird contact.
  • Cost-Effective Installation: These cables can be installed on existing poles or even on building walls without the need for expensive insulators.
  • Space Efficient: Perfect for congested narrow streets where traditional wide-spaced bare wires are dangerous or impossible to install.

Standards & Compliance

  • Design Standard: Manufactured and tested in accordance with IS 14255.
  • Conductor Standards: Conforms to IS 8130 for Aluminum conductors.
  • Messenger Wire: Conforms to IS 398 (Part 4) for high-strength Alloy.

Product Range

  • Configurations: Single Phase (2-core or 3-Core with street light), 2 Phase (3- Core or 4-Core with street light) and Three Phase (4-core or 5-core with street light).
  • Customization: Available with or without street lighting conductors and insulated or bare messenger wires.
