LT XLPE and PVC Power Cables

  1. Home
  2. Power Cables
  3. LT XLPE and PVC Power Cables

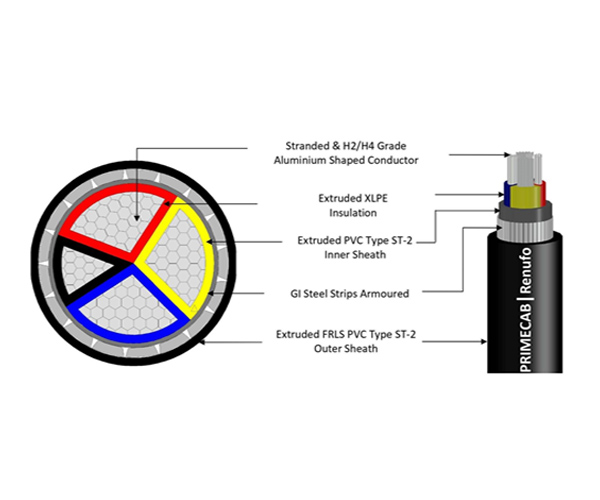

Our power cables are manufactured with copper / aluminium conductors with XLPE or PVC insulation, laid up, inner taped/extruded. The armoring is of galvanized mild steel wires/strips. The final outer sheath is with high grade FRLS PVC. (All as per relevant IS specification.)

  • L.T XLPE Insulated & PVC sheathed, armoured /unarmoured cables with Copper and Aluminium conductor 1.1 KV grade in two, three & half, four core up to 400 Sq.mm. and single core up to 1000 Sq.mm.
  • L.T PVC Insulated & PVC sheathed, armoured /unarmoured cables with Copper and Aluminium conductor 1.1 KV grade in two, three & half, four core up to 400 Sq.mm. and single core up to 1000 Sq.mm.
  • We also offer Flame Retardant (FR), Flame Retardant Low Smoke (FRLS) & Zero Halogen Flame Retardant (ZHFR) properties to any of our Power Cables as per the requirement of the customers.
  • We also Offer Heat Resistant (up to 85 Degree Celsius) features to our PVC Power Cable as per the requirement of the customer.
  • We also have the design & technical capabilities to make power cables that can withstand short circuit on conduct &armour of 45 KVA for 0.12 sec, if required by the customer.
  • We have also got the design, technical, production & testing capabilities to offer power cables that are water resistant, for areas that are exposed to heavy flooding, if deemed by the customer.
Building Wires
Applications of Power Cables
  • A power cable is an electrical cable, high dielectric strength & resistance to D.C. voltage effects; high mechanical strength & resistance to abrasion, vibration & ageing; resistant to most acids, alkalis, to temporary contact with solvents, oils and liquid fluids; flame retardant, does not support combustion and self-extinguishing consisting one or more electrical conductors, usually held together with an overall sheath.
  • Power cables are used for transmission of electrical power. Power cables may be installed as permanent wiring within buildings, buried in the ground, run overhead, or exposed.
  • LT cables can be used in industries like power distribution, power stations, railways, etc. revolving around 1.1 KV range.
